Diagonal Screen Size : 3.95
Drive IC : FT5446U
Interface : I2C
Operating Temp : -20℃~ +60℃
Storage Temp : -30℃~+ 75℃
Backlight : 8 White LED Parallel
Brightness : 250
Certification : RoSH, Reach
MOQ : 10pcs
Price : Negotiable
Packaging Details : Cartons, Capboard, EPE, Blister Tray.
Delivery Time : 3-5days
Payment Terms : T/T, Paypal
Supply Ability : 7kk/M
Brand Name : Limito
Model Number : LHS395KN-IC01F3
Place of Origin : China
480x480 Dot Lcd 3.95" Touchscreen TFT Display Square Shape TFT Lcd Module
LIMITO IPS TFT LCD Display Description:
LHS395KN-IC01F3 is a 480RGBX480 dot-matrix TFT LCD module. This module is composed ofa TFT
LCD Panel, driver ICs, FPC, a Backlight and a CTP unit
LIMITO IPS TFT LCD Display Specification:
|
LCD Size |
3.95 |
|
Display Mode |
Normally black |
|
Resolution |
480(H)RGB x480(V) |
|
Pixel pitch |
0.1497(H) x0.1462 (M) |
|
Active area |
71.856(H)x 70. 176(V)
|
|
Module size |
78.98(H) x 74.83(V) x2.14 (D) |
|
Pixel arrangement |
RGB Vertical stripe |
|
Display Colors |
262K |
|
Luminance(cd/m2) |
250 (TYP)Cd/m2 |
|
Viewing Direction |
All View
|
|
Weight |
TBD |

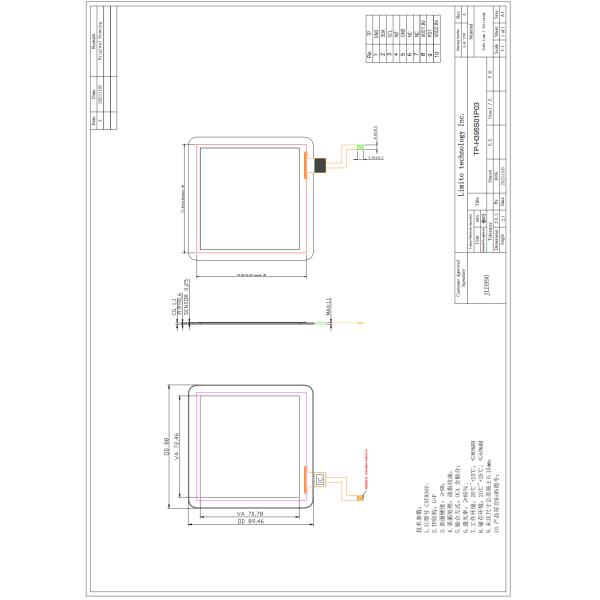

LIMITO IPS TFT LCD Display Mechanical Drawing

|
|
3.95 Inch TFT Touch Display 480x480 Dot Lcd TFT Display Square Shape Images |
