Customized TFT Touch Display 1.32 Inch Small TFT Lcd Module 400 Brightness

  • 1
  • 2
  • 3

Certification : RoSH, Reach

MOQ : 10pcs

Price : Negotiable

Packaging Details : Cartons, Capboard, EPE, Blister Tray.

Delivery Time : 3-5days

Payment Terms : T/T, Paypal

Supply Ability : 7kk/M

Diagonal Screen Size : 1.32

Drive IC : GC9c01

Interface : I2C

Operating Temp : -10℃~ +60℃

Storage Temp : -20℃~+ 70℃

Backlight : 2 White LED Parallel

Brightness : 400

Brand Name : Limito

Model Number : LH132R-IC46-TP

Place of Origin : China

Contact Now

Customizedized TFT LCD 1.32 Inch Small Touch TFT Display Lcd Module

LIMITO IPS TFT LCD Display Description:

LH132R-IC46-TP is a 360RGBX360 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight and a CTP unit.

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.32

Display Mode

Normally black

Resolution

360(H)RGB x360(V)

Pixel pitch

0.093(H) x 0.093(V)

Active area

⌀33.48

Module size

38.7(H) x38.85(V) x3.34 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

300 (TYP)Cd/m2

Viewing Direction
All View

Weight

TBD

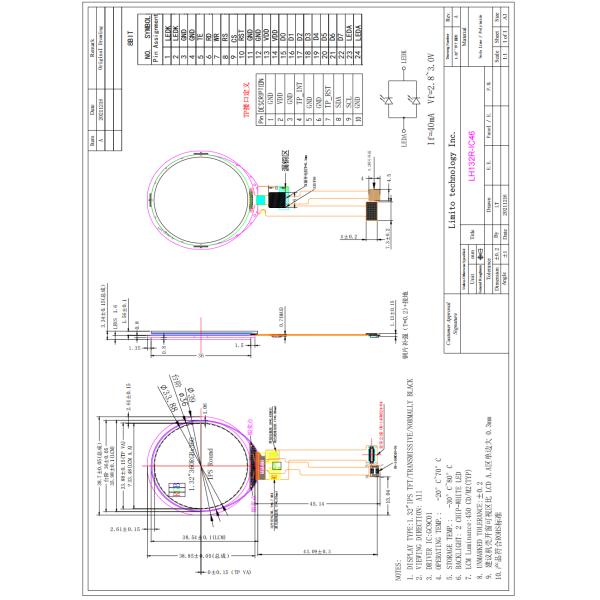

LIMITO IPS TFT LCD Display Mechanical Drawing

Customized TFT Touch Display 1.32 Inch Small TFT Lcd Module 400 Brightness

LIMITO IPS TFT LCD Display Advantages:

1. Compact Size

Ideal for applications where space is limited, such as wearables, handheld devices, and compact electronics.

2. High Resolution

Offers clear and vibrant visuals, enhancing user experience with sharp images and text.

3. Touch Functionality

Provides interactive capabilities, allowing users to navigate interfaces intuitively.

4. Low Power Consumption

Efficient power usage, making it suitable for battery-operated devices.

5. Customizedizedizability

Can be tailored to specific needs, including interface design, features, and dimensions.

6. Wide Viewing Angles

Maintains image quality from different angles, improving usability in various settings.

7. Robustness

Durable construction, often resistant to environmental factors like moisture and temperature variations.

8. Versatile Applications

Suitable for a range of applications, including IoT devices, medical equipment, and consumer electronics.

9. Easy Integration

Often comes with libraries and support for easy integration with microcontrollers and development platforms.

10. Cost-Effective

Offers a balance between quality and price, making it accessible for various projects.
